Performance

（性能）

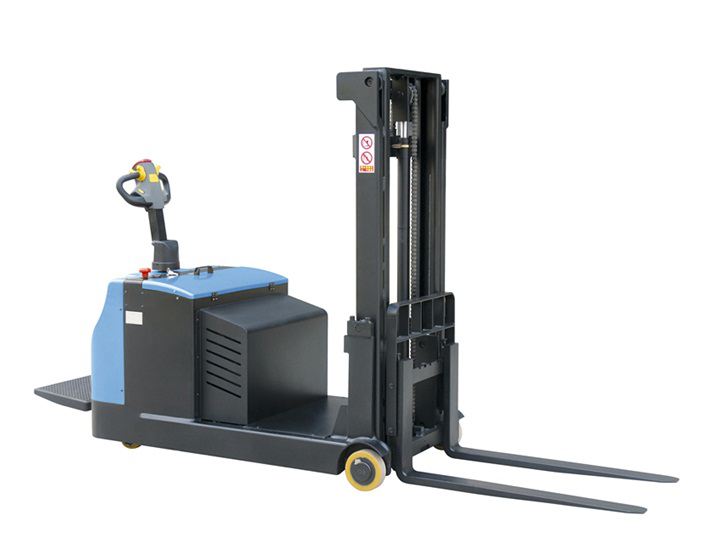

Model（型號）

KLA10

負載能力Maximum load capacity

kg

1000

載荷中心距with load center at

Q

mm

500

起升高度Maximum lifting height

H3

mm

2500

傾斜角度Tiltiing angle (up/down)

CDdegree

0.6

無負載行駛速度Travel speed (without load)

km/h

5

負載行駛速度Travel speed (with load)

km/h

4

無負載起升速度Lifting speed (without load)

mm/s

180

負載起升速度Lifting speed (with load)

mm/s

100

無負載大爬坡能力Ascend slope ability (without load )

%

8

負載大爬坡能力Ascend slope ability (with load )

%

5

不帶踏板小轉彎半徑Minimum turning radius (without platform)

Wa

mm

1450

帶踏板小轉彎半徑Minimum turning radius (with platform)

Wa1

mm

1850

Dimensions

（尺寸）

整車長度Overall length of frame

L

mm

2612

整車寬度Overall width of frame

B

mm

850

門架降至低高度Mast lowered height

H1

mm

1770

門架起升至整車高度Max height(mast lifted with backrest)

H4

mm

3050

軸距Wheelbase

Y

mm

1120

貨叉長度Fork length

mm

1070

貨叉外側距Fork spread width

mm

200-725

貨叉厚度Fork thickness

mm

100

貨叉降至低高度Fork lowered height

S

mm

35

Tire

（輪胎）

承載輪Front wheel

mm

180*55

驅動輪Drive wheel

mm

230*75

平衡輪Caster wheel

mm

130*55

車輪類型Wheel material

polyurethane（聚氨酯）

Electrical components

（動力形式）

驅動電機類型Drive motor type

AC series motor(交流電機）

功率 Rated output

9

kw

1.2

起升電機類型Hoist motor type

DC series motor（直流電機）

功率  Rated output

kw

2.2

battery

（電池）

電壓Voltage

V

24

容量Capacity

AH

210/240

重量Weight

kg

195/225
